The Evo II Pro drone is adapted to search and surveillance missions with a 40 minutes autonomy, the best flight capacity available on the market for its category.
Equipped with a Sony CMOS 1'' 20 megapixel sensor and a maximum ISO sensitivity of 12800, it allows to capture images of extreme quality in limited lighting conditions.
Its adjustable aperture from f/2.8 to f/11 will allow you to obtain all the details in a dark and complex environment as well as in high light conditions.
360° Obstacle Avoidance System: with 19 sensor groups (including 12 visual sensors), the EVO II Pro allows you to focus on your mission while ensuring the safety of your flights.
Dynamic Track 2.0: the drone can simultaneously model the position and speed of targets, accurately predict their trajectory and continuously track them while identifying up to 64 objects at the same time.

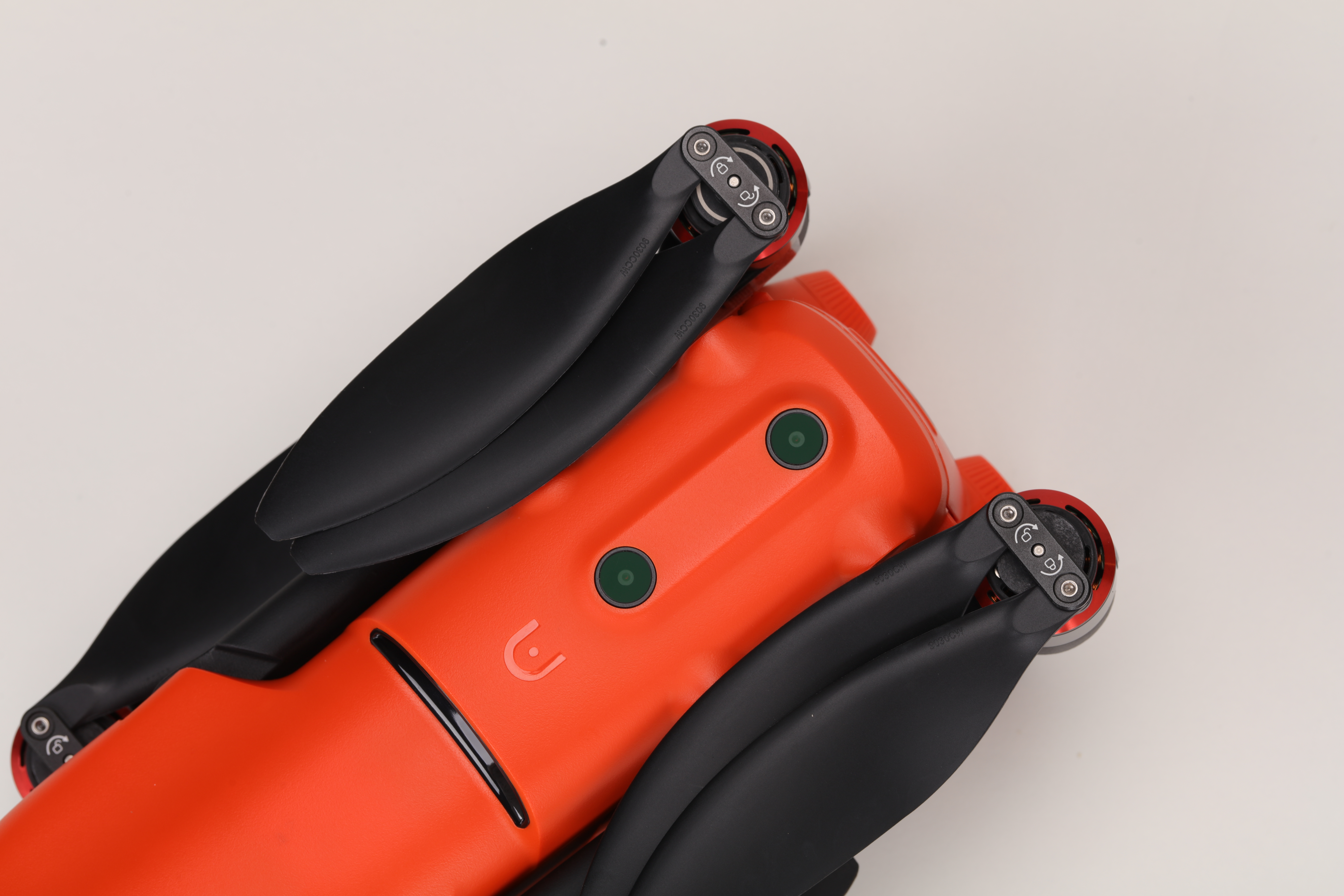

Easily transportable with its foldable arms, it is able to fly with winds up to 72 km/h.
An internal storage capacity of 8GB is available and 128GB by micro SD card. As an option, the Live Deck will allow you to wirelessly transmit the video stream in real time.
| DRONE | |
| Flight time | 40 minutes |
| Wheelbase | 397 mm |
| Weight (with batteries) | 1,250 kg |
| Maximum Take Off Weight (MTOW) | 2 kg |
| Application | Autel Explorer |
| GNSS | GPS, GLONASS, Galileo |
| Operating frequency | 2.400 GHz - 2.4835 GHz ；5.725 - 5.850 GHz |
| Capacité RTK | Yes (option) |
| SÉCURITÉ | |
| IP Rating | NC |
| Sensing system | Multidirectional |
| Altitude / flight ceiling | 7000 m |
| Operating Temperature | -10℃ ~ 40℃ |
| Max Wind Speed Resistance | 72 km/h (20 m/s) |
| Max Speed | 72 km/h (20 m/s) |
| Internal storage | 8 Go |
| External storage | 256 Go |
| CAMÉRA | |
| Sensor | CMOS 1'' 20MP |
| Focal length | 28,6mm@f/2.8 |
| Zoom | x1 à x8 ( x3 without loss) |
| Video resolution | 6K, 4K, Full UD |
| Video format | MP4/MOV |
| Photo format | MP4 / MOV (MPEG-4 AVC/H.264, HEVC/H.265) |
| Picture resolution | 5472*3648 (3:2) 5472*3076 (16:9) 3840*2160 (16:9) |
| CONTROLLER | |
| Frequencies | 2.400 GHz - 2.4835 GHz ；5.725 - 5.850 GHz |
| Radio range | 5 km (CE) / 9 km (FCC) |
| Video output | USB Litning, USB-C |
| Video return resolution | 720p@30fps / 1080p@30fps |
| BATTERY | |
| Type | LiPo 3S |
| Capacity | 7100 mAh |
| Voltage | 11.55 V |
| Weight | 365 gr |
| Self-heating capacity | Yes |
| Reloading time | 90 minutes |
| Airline compatible | Yes |
Other version(s) available
MILTON's teams are trained to meet your needs with customized solutions. Performance, technologies, payloads, training, maintenance: you can determine with our teams the specifications of the offer that will perfectly meet your needs and adapt to your procedures.
