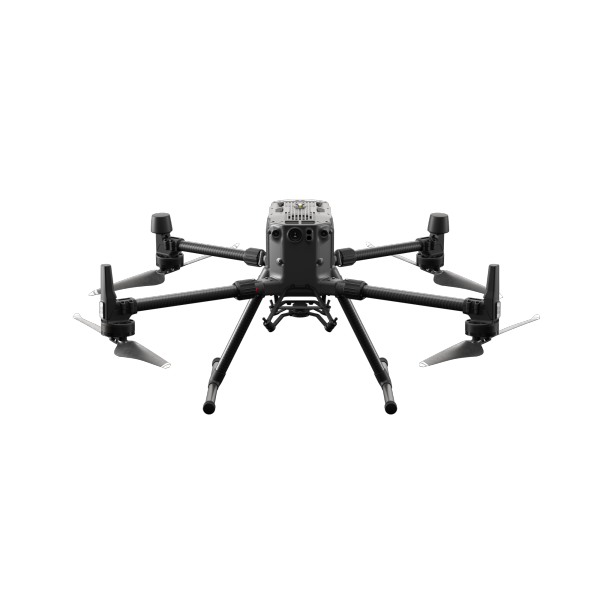

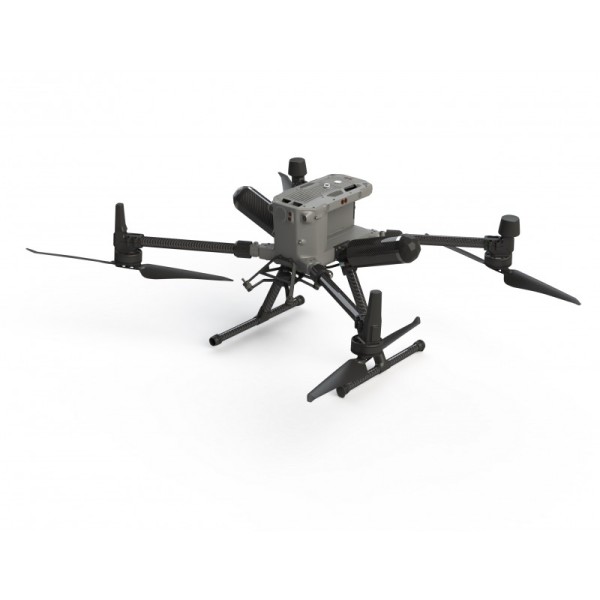

Matrice 300RTK with parachute and circuit breaker

10500.17 € HT

€10,500.17
Parachute avec coupe circuit interne

  • Certification package: allows you to carry out a mission in complete safety
  • Battery life up to 55 minutes (without payload)
  • Real-time video streaming up to 8 km
  • Automatic waypoint navigation system
  • Data security, AES-256 standard data encryption
Read more

Complete description Matrice 300RTK with parachute and circuit breaker

Designed for professional use, the Matrice 300RTK offers high performance and reliability.

Particularly suited to surveillance and security missions, this drone is capable of carrying dedicated sensors up to 2.7kg.

With its reduced weight and size, it can be easily transported.

With a strong autonomy and a large carrying capacity, it is able to carry sensors dedicated to surveillance and security.

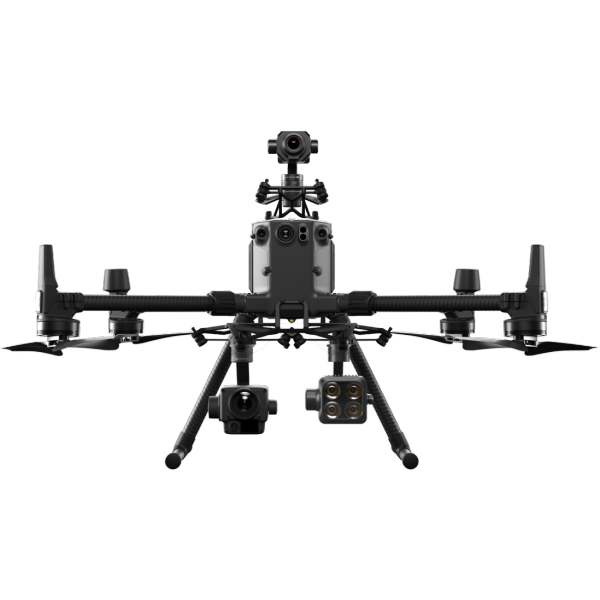

Capable of carrying up to three pods including the Zenmuse H20 and H20T as well as other models such as the Z30, XT2, XT S and X30TL (up to 2.7 kgs of maximum weight).

  • The H20 camera has for example 3 different sensors:
  • A wide angle camera to check movements over a large area,
  • A zoom camera with a hybrid optical zoom x23 (maximum zoom x200),
  • A laser rangefinder to measure the distance of an object with an accuracy of 0.2m

Equipped with TB60 batteries, it will guarantee up to 55 minutes of autonomy (empty) or 45 minutes with a Zenmuse H20 (as an example). The Matrice 300 RTK is one of the most reliable drones on the market thanks to the redundancy of its components as well as the positioning and obstacle detection in 6 directions.

AI features such as Smart Pin & Track allow for a variety of actions, especially in the area of security. It is possible to track subjects or moving objects while transmitting its coordinates to several operators on the ground.

Technical specifications Matrice 300RTK with parachute and circuit breaker

DRONE
Flight time 45 minutes (with H20 camera)
Wheelbase 895 mm
Weight (with batteries) 6,3 kg (with single bottom gimbal)
Maximum Take Off Weight (MTOW) 9 kg
Application DJI Pilot 2
GNSS GPS, GLONASS, Galileo, BeiDou
Operating frequency 2,4000 - 2,4835 GHz; 5,725 - 5,850 GHz
Capacité RTK Yes
SÉCURITÉ
IP Rating IP45
Sensing system Multidirectionnal
Altitude / flight ceiling 7000 m (estimated)
Operating Temperature De -20 à +50°C
Max Wind Speed Resistance 54 km (15m/s)
Max Speed 82.8km/h (23m/s)
Internal storage NC
External storage NC
CAMÉRA
Sensor Zoom camera: 1/1.8" 4MP CMOS; 1/2.7" 2MP CMOS wide angle sensor
Focal length 29mm wide angle starlight sensor; 53mm wide angle thermal sensor
Zoom 23x optical zoom, 128x total zoom
Video resolution NC
Video format MP4
Photo format JPEG
Picture resolution NC
Camera mode NC
THERMAL CAMERA
Sensor resolution 640x512 @30Hz
Zoom (thermal sensor) up to x8
Picture format R-JPEG (16 bit)
EO/ IR simultaneous video return Oui
RANGEFINDER
Wavelength 905nm
Measuring range 3 - 1 200m (vertical surface with ≥ 12m diameter and 20% reflectance)
Measuring accuracy ± (0.2 m + Dx0.15%) where D is the distance to a vertical surface
CONTROLLER
Type Lipo 12S
Smart Controller Enterprise
Frequencies 2.400 - 2.483 GHz ; 5.725 - 5.850 GHz
Radio range 8 km (CE) / 15 km (FCC)
Video output USB
Video return resolution 1080p, 1200cd/m² brightness
BATTERY
Capacity 5935 mAh
Voltage 52.8 V
Weight 1,35 kg
Self-heating capacity Yes
Reloading time With BS60 charging station: about 60 minutes for two TB60 batteries (with 220V input)
Airline compatible No

Product content Matrice 300RTK with parachute and circuit breaker

  • 1 x DJI Matrice 300 RTK
  • 1 x DJI Smart Controller Enterprise
  • 1 x USB charger
  • 1 x USB-Type C cable
  • 1 x Battery WB37 (radio control)
  • 2 x 2110 propellers (CW)
  • 2 x 2110 counterclockwise propellers (CCW)
  • 2 x Landing gear
  • 1 x Pair of stick covers
  • 2 x Propeller brackets
  • 4 x Dampers for sticks
  • 1 x USB to USB cable
  • 1 x Calibration chart
  • 1 x Carrying case
  • 1 x Harness for radio control
  • 1 x Set of rubber port covers
  • 1 x M1.6 and M3 screw set with keys
  • 1 x Power cable
  • 24 months warranty

Key benefits Matrice 300RTK with parachute and circuit breaker
